SAFİ FLAT COIL HEATERS WITH THERMOCOUPLE Fe-CuNi
SWRP/F/T

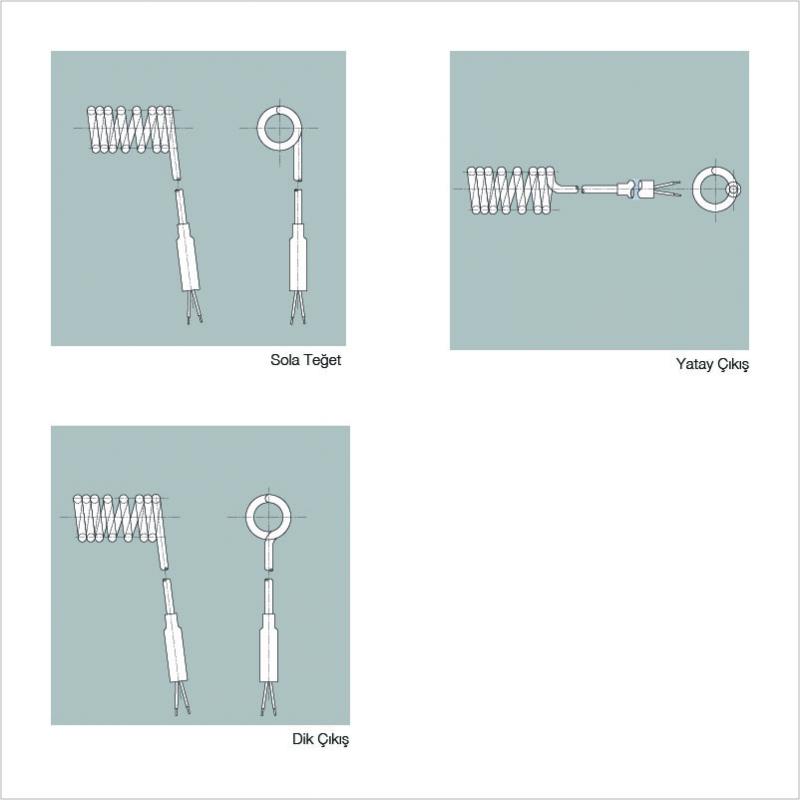

SAFİ 4.2x2.2 mm coil heaters are used in plastic hot runner systems to ensure the fluidity that require high power and efficiency in a narrow space.The heater is coiled according dimensions of nozzle. Coil heaters are not operated idle. It should be operated with temperature controller system.
| Technical Specification | |
| Insulation material: | Compresses MgO |
| Max. Sheath temperature: | 750°C with clamping band |
| 650°C | |
| Standard Voltage: | 230V |
| Wattage tolerance: | ±%10 |
| High Voltage Test: | 800V |
| Insulation Resistance: | ≥ 5 MΩ 500V da |
| Max. Total length straight | 3000mm |
Stock Range
| Cold Length/mm | Heated Length/mm | Watt |
| 25+25 | 300 | 195 |
| 25+25 | 330 | 215 |
| 25+25 | 380 | 240 |
| 25+25 | 430 | 295 |
| 25+25 | 550 | 350 |
| 25+25 | 570 | 400 |
| 25+25 | 650 | 460 |
| 25+25 | 810 | 610 |
| 25+25 | 950 | 690 |
| 25+25 | 1200 | 800 |
| 50+20 | 1600 | 1150 |
