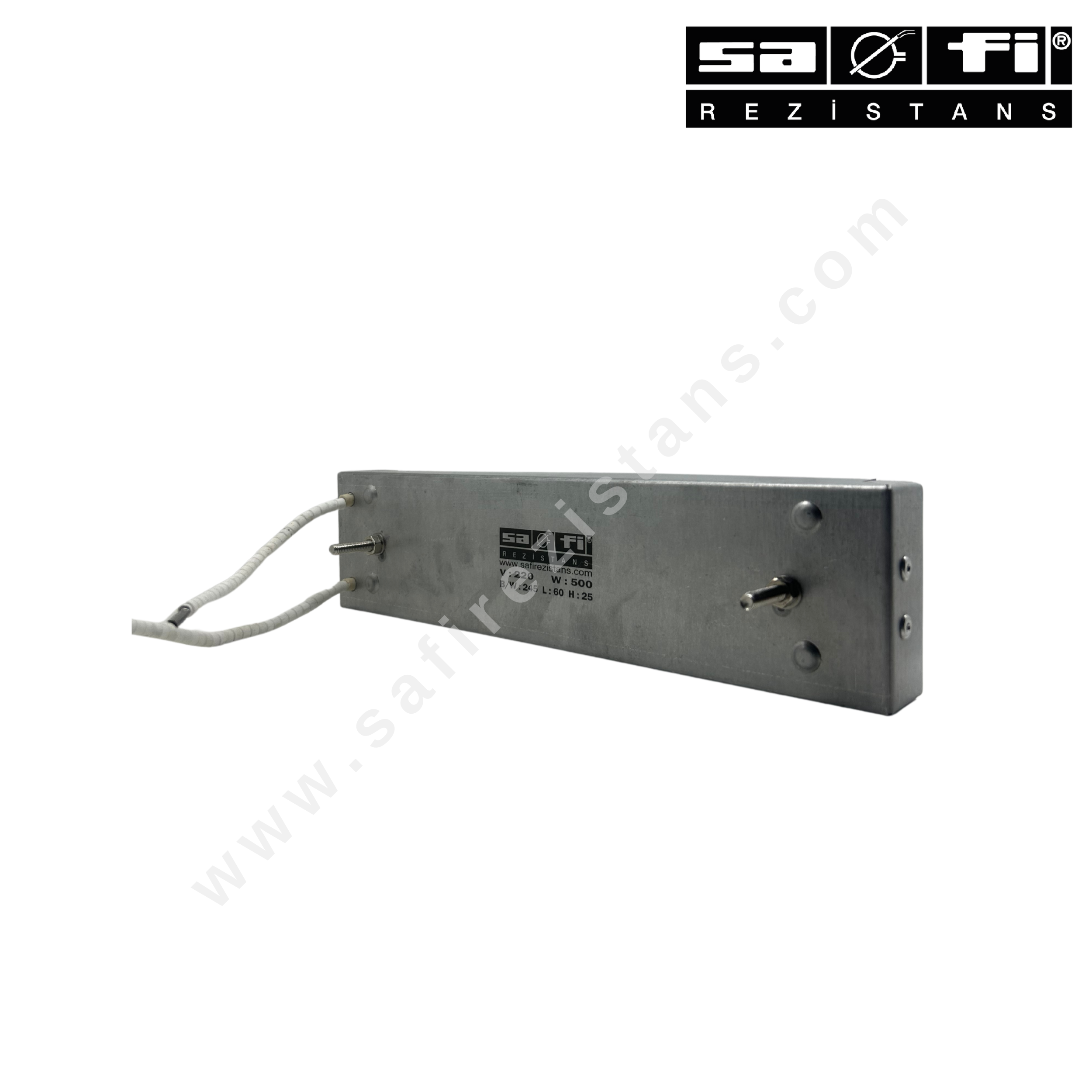

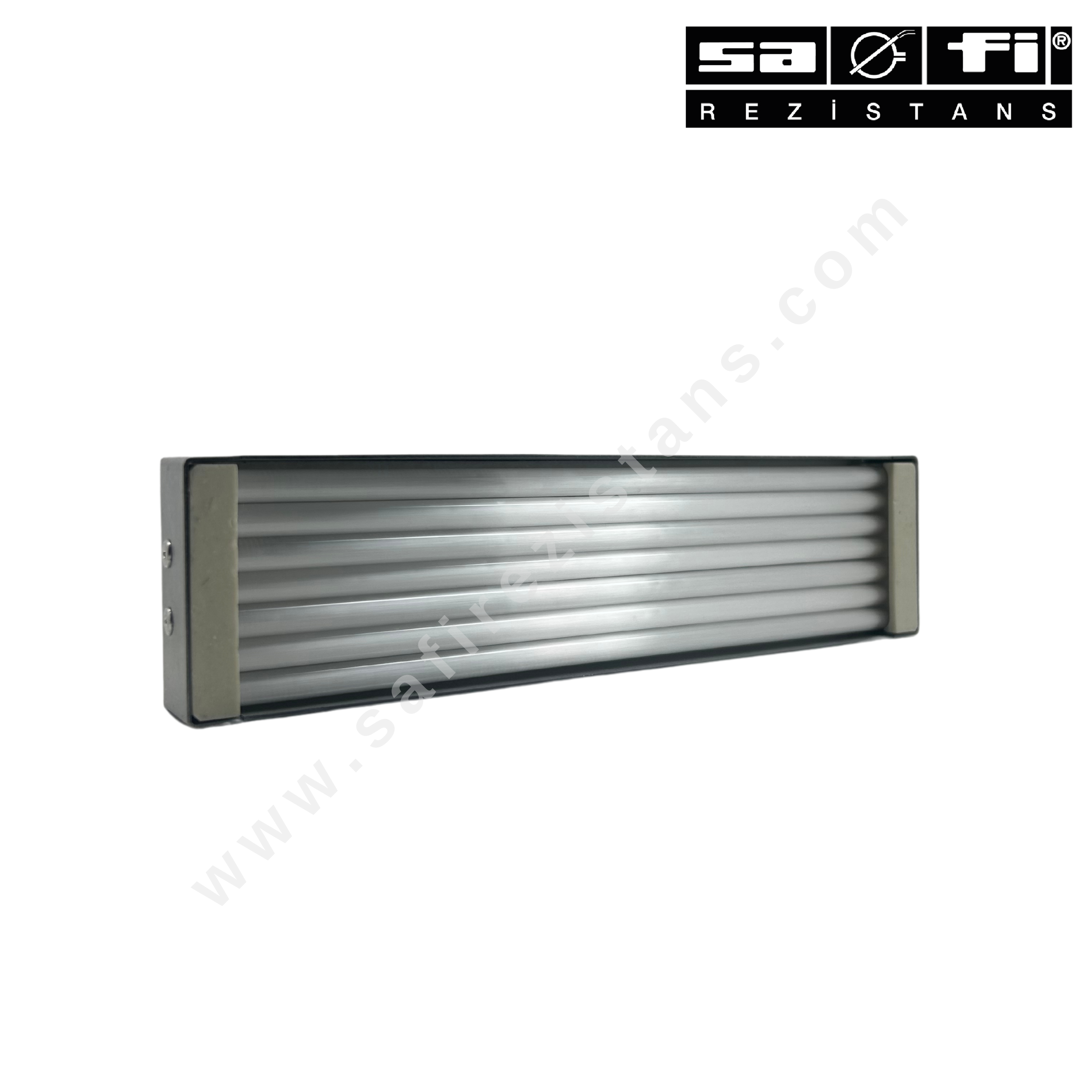

QH1 Quartz heaters are specially designed industrial heating elements that provide a fast response time and efficient heat transfer. With power options ranging from 150W to 1000W, they offer high heating performance through infrared technology. These heaters are particularly suitable for precision manufacturing processes, plastic forming, textile, and food industries.

Key Features

✅ Fast Heating: Instant heat production with quartz technology for rapid response time.
✅ High-Efficiency Infrared Heating: Effective heat transfer through an infrared wavelength range of 1.5 – 8 microns.
✅ Wide Power Range: Available in 150W – 1000W options.
✅ Durable and Lightweight Design: Manufactured with quartz glass tubes and an aluminum-clad steel body for durability.
✅ High-Temperature Resistance: Can operate at temperatures up to 500°C.
✅ Easy Installation: Standard 248x63x26 mm dimensions allow for seamless integration into many systems.

Technical Specifications

🔹 Product Name: QH1 Quartz Heater
🔹 Power Options: 150W, 250W, 300W, 400W, 500W, 650W, 750W, 1000W
🔹 Dimensions: 248x63x26 mm
🔹 Operating Voltage: 230V (Standard)
🔹 Infrared Wavelength Range: 1.5 – 8 microns
🔹 Maximum Operating Temperature: Up to 500°C
🔹 Power Connection: Supplied with 100 mm ceramic beaded power leads
🔹 Mounting Position: Quartz glass tubes should always be mounted horizontally

Applications

• Plastic forming and injection molding machines
• Food production and processing systems
• Textile and drying industries
• Electronics soldering and heating processes
• Packaging and vacuum sealing machines
• Industrial ovens and heating chambers
• Medical sterilization equipment
