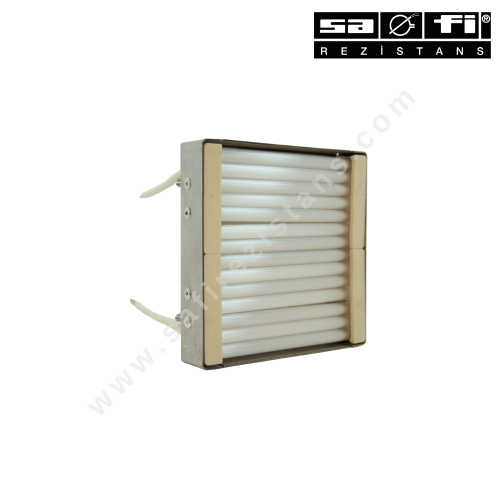

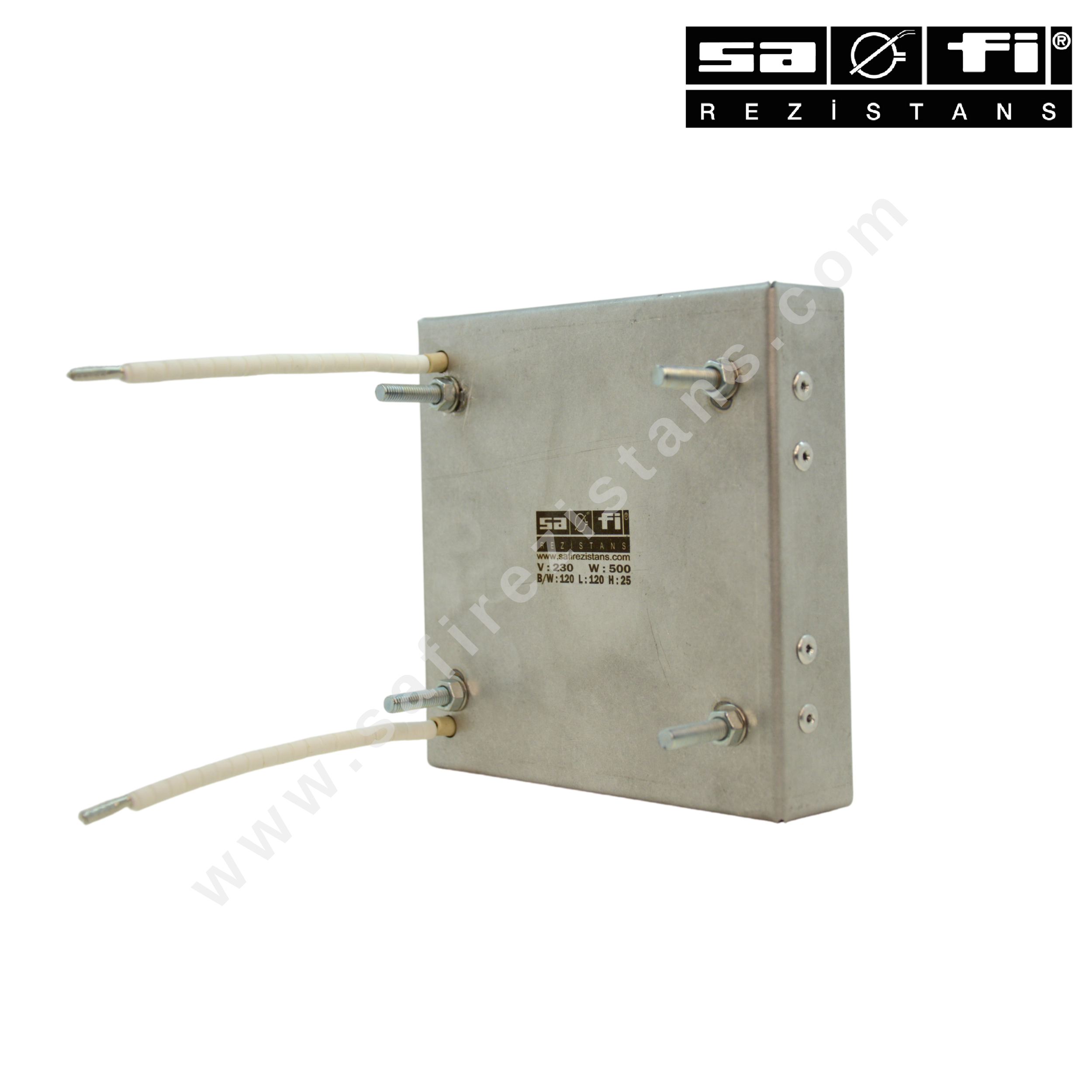

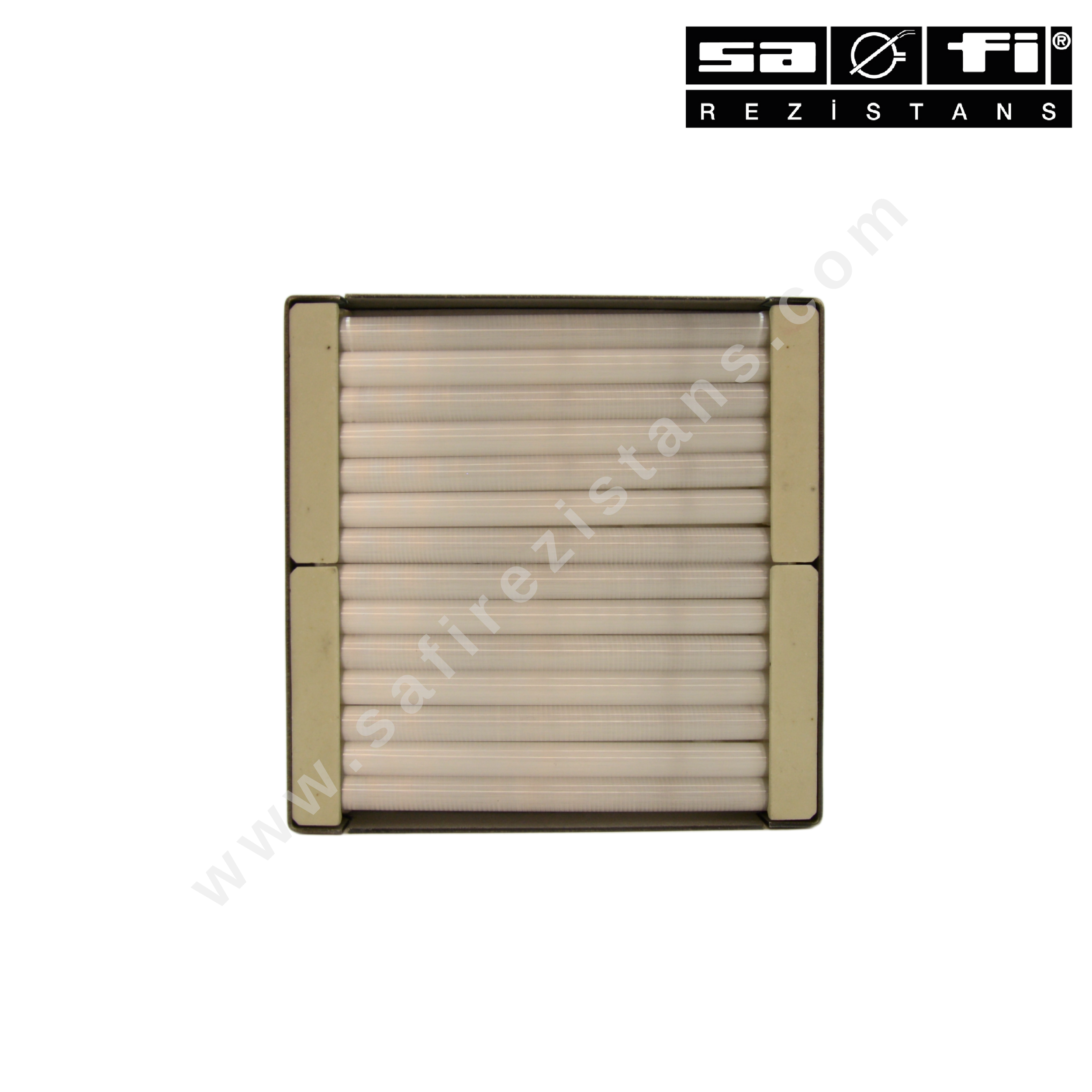

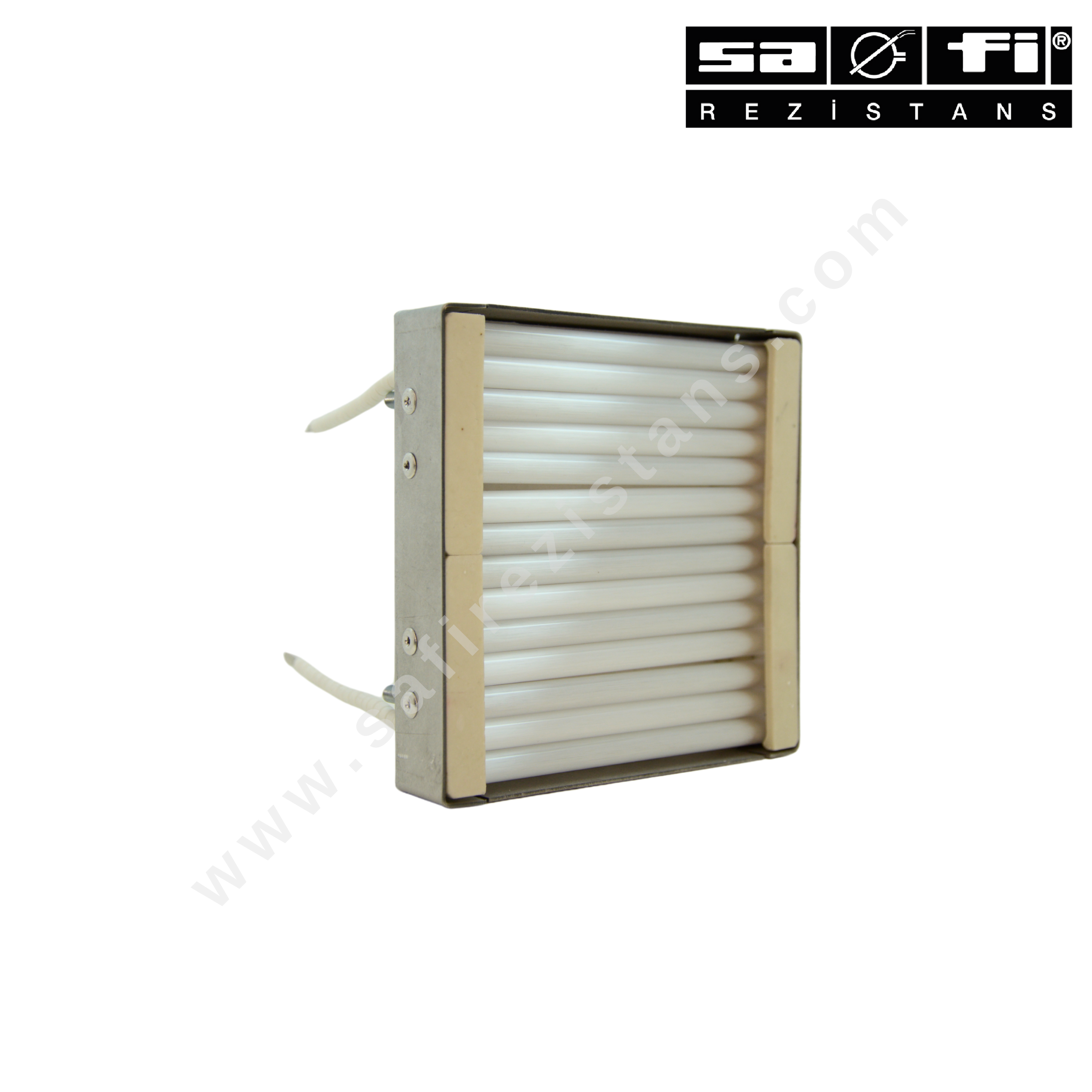

QH Type 0 Quartz Cassette Heaters are high-performance infrared heating elements designed to provide fast heat response and efficient heat transfer. With power options ranging from 250W to 1000W, these heaters offer instant and uniform heat distribution, making them ideal for industrial processes requiring efficient heating. Thanks to infrared quartz technology, they are particularly effective in manufacturing, plastic processing, drying, and packaging systems.

Key Features

✅ Fast Heat Response: Infrared quartz technology ensures instant heat generation, minimizing warm-up time.
✅ Wide Power Range: Available in 250W - 1000W power options.
✅ Compact & Durable Design: Lightweight yet robust aluminum-clad steel body.
✅ Optimized Heat Radiation: Infrared heat transfer in the 1.5 – 8-micron wavelength range.
✅ Easy Installation & Integration: Standard 124x124x26 mm size for seamless integration into various systems.

Technical Specifications

🔹 Product Name: QH Type 0 Quartz Cassette Heater
🔹 Power Range: 250W, 300W, 400W, 500W, 650W, 750W, 1000W
🔹 Dimensions: 124x124x26 mm
🔹 Operating Voltage: 230V (Standard)
🔹 Infrared Wavelength Range: 1.5 – 8 microns
🔹 Minimum Recommended Spacing Between Elements: 5 mm
🔹 Maximum Operating Temperature: Up to 500°C (932°F)
🔹 Power Connection: Supplied with a 120 mm ceramic beaded power cable.
🔹 Mounting Position: Quartz glass tubes must always be mounted horizontally.

Applications

• Plastic molding and injection machines
• Industrial drying and heating systems
• Textile and fabric processing
• Electronics soldering and preheating
• Vacuum sealing and packaging machines
• Food industry heating applications
• Medical sterilization and infrared heating systems
