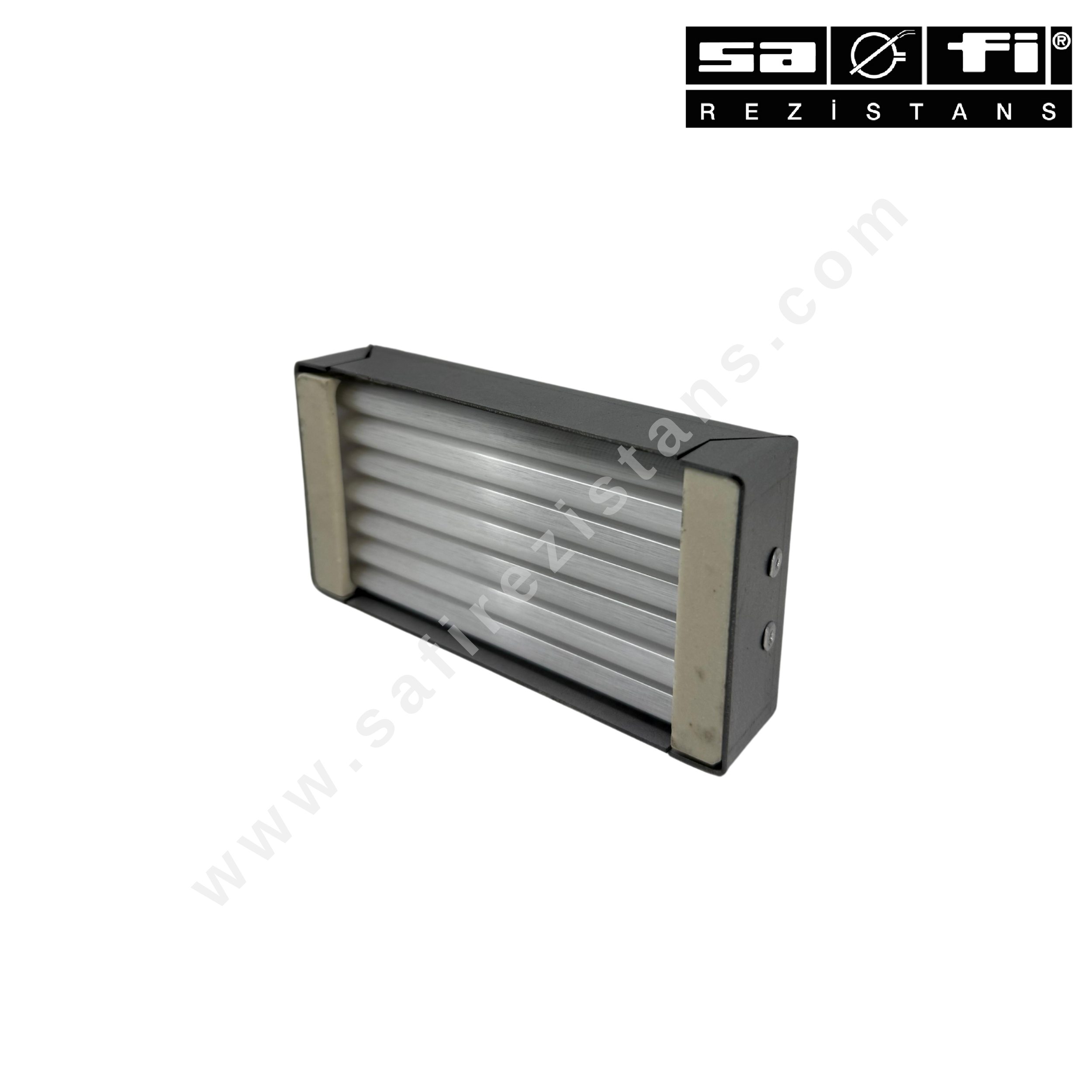

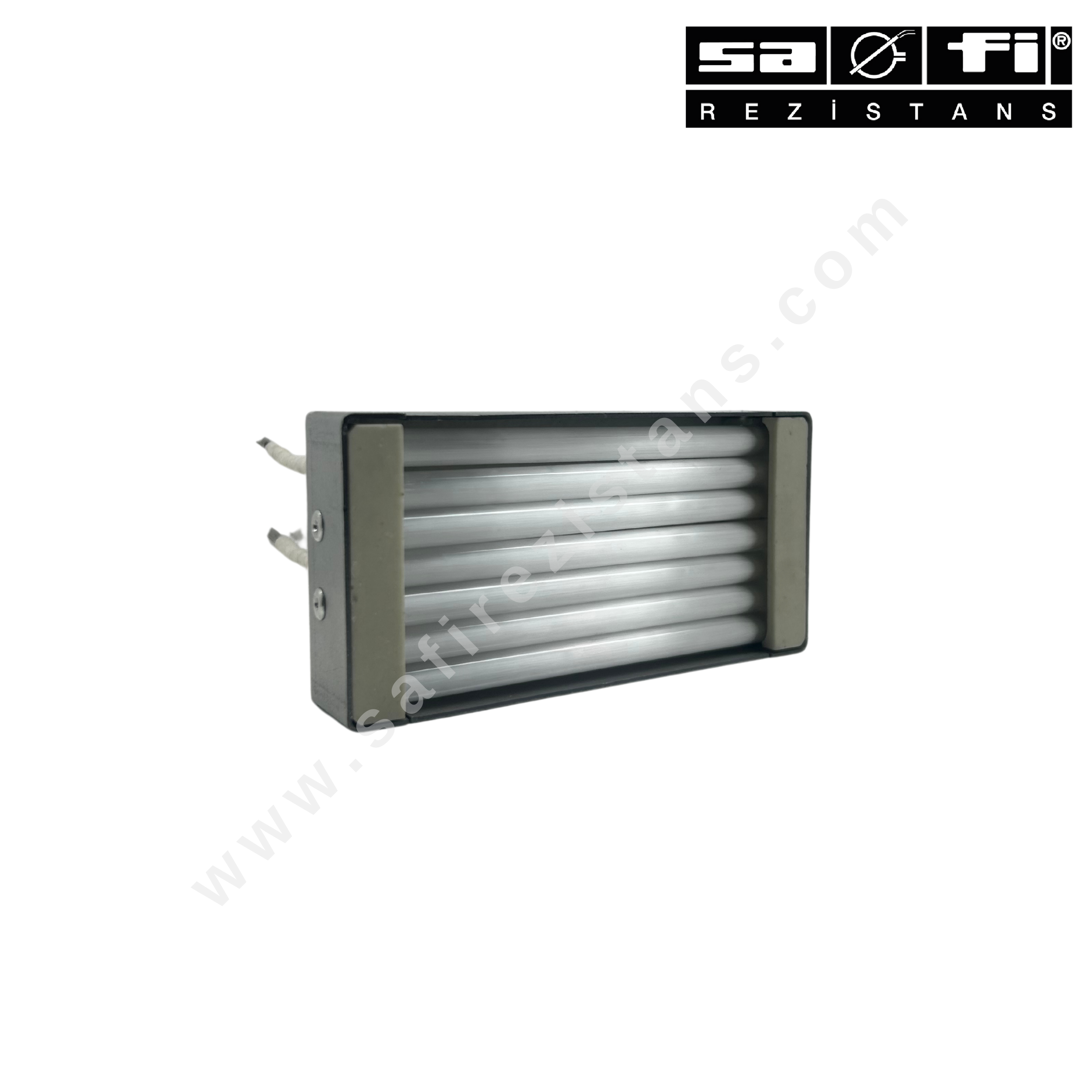

Quartz Type 2 cassette heaters are specially designed industrial heating elements that provide fast response time and efficient heat transfer. With power options ranging from 150W to 500W, they deliver high heating performance through infrared technology. These heaters are particularly suitable for precision manufacturing processes and are widely used in plastic forming, textile, and food industries.

🔥 Key Features

✅ Fast Heating: Instant heat generation with quartz technology
✅ High-Efficiency Infrared Heating: Effective heat transfer in the 1.5 – 8 micron wavelength range
✅ Wide Power Range: Available in 150W – 500W to meet diverse application needs
✅ Durable and Lightweight Design: Built with quartz glass tube and aluminum-clad steel body for long-lasting performance
✅ High Temperature Resistance: Operates at temperatures up to 500°C
✅ Easy Installation: Standard dimensions of 124x63x26 mm allow easy integration into many systems

⚙️ Technical Specifications

• Product Name: Quartz Type 2 Cassette Heater

• Dimensions: 124x63x26 mm

• Power Options: 150W, 250W, 300W, 400W, 500W

• Operating Voltage: 230V

• Infrared Wavelength Range: 1.5 – 8 microns

• Maximum Operating Temperature: 500°C

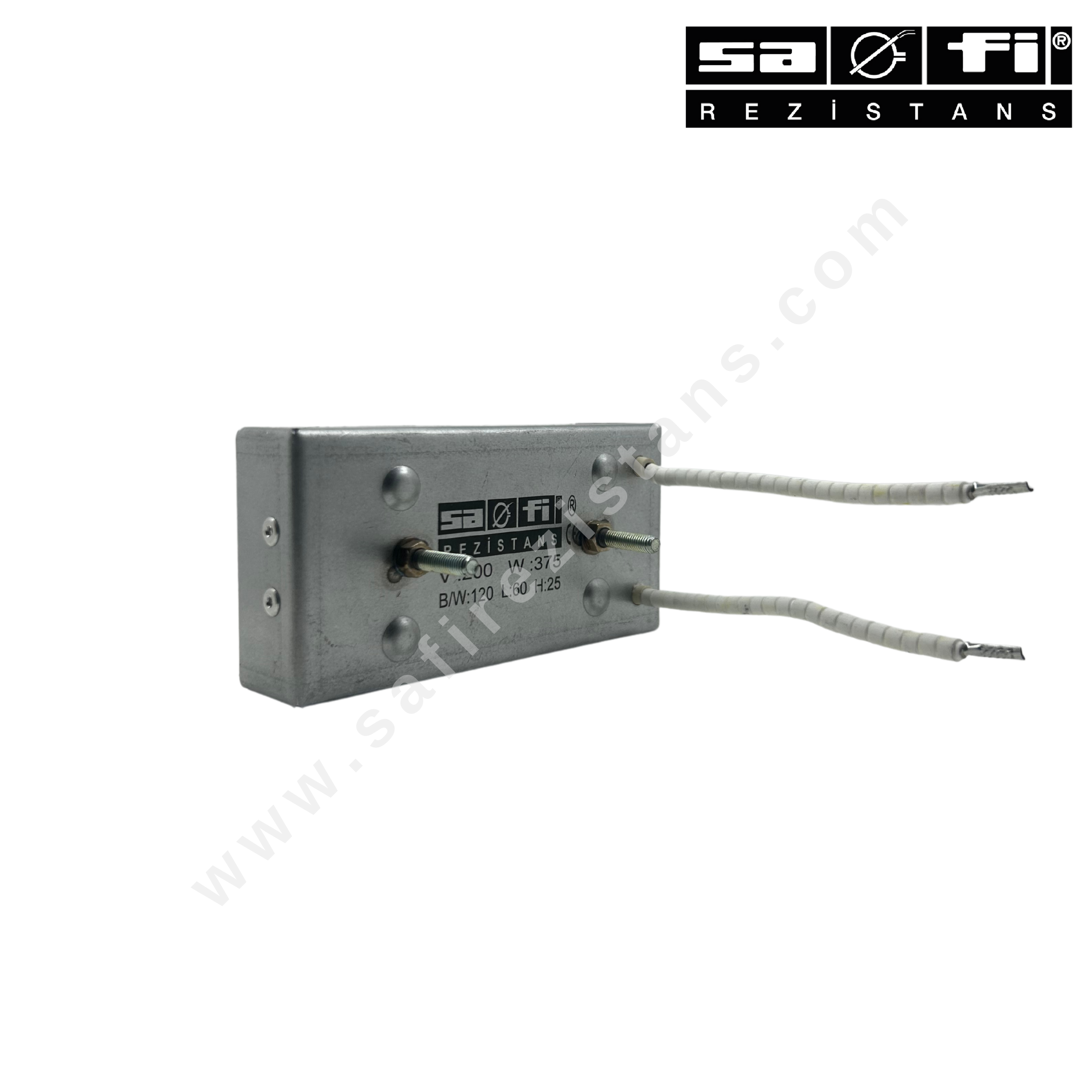

• Power Cable: Supplied with 100 mm ceramic-beaded leads

• Mounting Position: Quartz tubes should always be mounted horizontally

🛠️ Applications

• Plastic forming and injection molding machines

• Food production and processing systems

• Textile and drying lines

• Electronics soldering and heating processes

• Vacuum packaging and sealing machines

• Industrial ovens

• Medical sterilization devices
